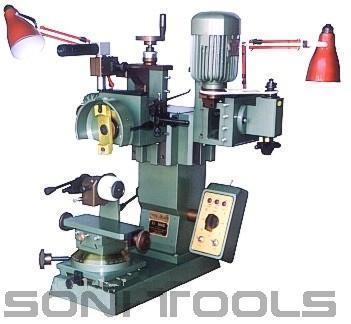

Faceting Machine – Combined Horizontal and Vertical Revolving Head

Model: ST-DRH

Standard Accessories Included:

• Two 0.17 HP single phase motors,
• Microscopic attachment with Microscope,
• set of bangle collets,
• set of ring collets,
• taper pendent collets,
• flat pendent collet,
• pipe chain and ball para attachment,
• hand operated brake for horizontal head,
• 2 pcs. Diamond Tools & Tungsten carbide tools.

- Combined Horizontal and Vertical Revolving Head
- Self-aligned universal machine

Specifications:

  This is an extremely versatile yet simple to operate machine allowing working with horizontal and vertical head on the same article without having to recenter the machine. With the help of simple lever, the vertical head can be brought over the work piece without changing the overall center of the machine. This machine is extremely efficient for higher production.

Retail Price USD $2400/-  (Ex-works Mumbai, India) Standard Accessories Included

 < Back Home

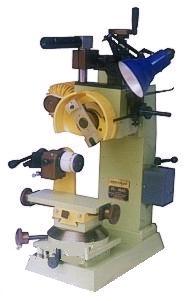

Faceting Machine - Single Horizontal Head

Model: ST-SBH   Standard Accessories Included:

• One 0.17 HP single phase motor,
• Microscopic attachment with Microscope,
• set of bangle collets,
• set of ring collets,
• set of taper pendent collets,
• flat pendent collet,
• pipe chain and ball para attachment,
• hand operated brake for horizontal head, Diamond Tools & carbide tool.

 Single Horizontal Head

 Price USD $1750/- (Ex-works Mumbai, India) Standard Accessories Included

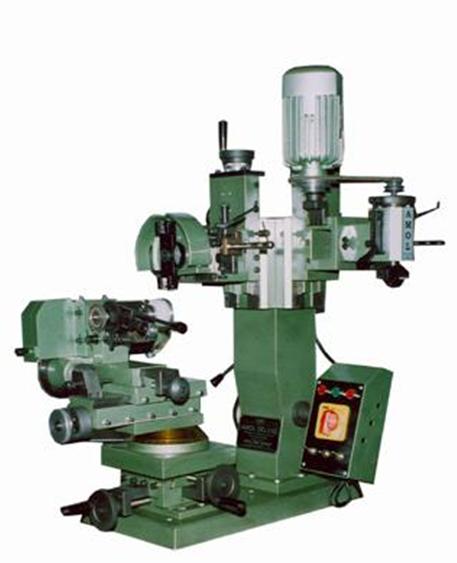

Faceting Machine - ZigZag Machine with Combined Horizontal and Vertical Revolving Head

Model: ST-ZZF

Standard Accessories Included:

• One 0.17 HP single phase motor,
• Microscopic attachment with Microscope, set of bangle collets,
• set of ring collets,
• set of taper pendent collets,
• flat pendent collet,
• pipe chain and ball para attachment,
• hand operated brake for horizontal head, Diamond Tools & carbide tool.

 Horizontal / VerticalCombined Zig-Zag machine is the latest member in our very popular models of goldsmith machinery. The

Zig-Zag Machine is of rigid construction which gives

vibration free, smooth & noisless cutting while

working.

The main function of Zig-Zag Machine is to form

different types of back ground impressions on bangles,

wedding rings, in waves form. This waves form

background self design impressions gives laser as well

as rainbow coloured effect on the articles.

One can decorate Horizontal as well as Vertical

Zig-Zag on the articles in one operation without

disturbing the articles. It's going to be the heart

throb amongst the goldsmiths of the country as well as

abroad. No skilled worker is needed as its very easy

to operate.

Also long cut attachment can be fitted adding more

stars to your workmanship.

------------------------------------------------------------------------------------

Heads = 1 Horizontal & 1 Vertical

Type of Main Centre = Fixed

Type of Head = Revolving

No. of axis = 2 (Z - Vertical & Z-1 Vertical for

Depth)

Vertical ‘Z’= axis Movement  Screw

Vertical ‘Z-1’ =axis for depth  5.5 mm

Horizontal Spindle Motor = 0.25 HP / 2800 RPM

Horizontal Spindle Speed = 5600 RPM

Vertical Spindle Motor = 0.25 HP / 2800 RPM

Vertical Spindle Speed = 6500 RPM

Zig-Zag Attachment Motor  =0.13 HP / 110 RPM PMDC

Geared

Net / Gross Weight (kgs.) = 230 / 260

Dimensions (mm)  740 x 590 x 760

Shipping Volume (m3)  0.35

USD $ 2900 (Ex-works Mumbai, India) Standard Accessories Included

Sr. No.

Machine / Tools

Price in US$

Inside Turning Machine for Bangles and Ring

 1400.00

Bangle & Ring Grooving Machine – Hand Operated with set of 12 Grooving Rolls:

210.00

Jewelry Stamping Press – Hand Operated:

150.00

Jewelry Stamping Press – Hand Operated – Heavy Duty:

190.00

Bangle Expanding Machine: Manually Operated:

350.00

Ring Expanding & Reducing Machine: Manually Operated:

150.00

Bangle Sizing Machine with 17 pcs. Rounding Dies:

350.00

Ring Sizing Machine with 12 pcs. Rounding Dies:

150.00

Planishing (Flattening) Hammer Machine:

75.00

Grooving Block – size 2.5” x 2.5” x 2”:

25.00

Grooving Block – size 2” x 2” x 3”:

25.00

Grooving with Dapping (Doming) Block – size 100 x 65 x 20 mm:

23.00

Grooving with Dapping (Doming) Block – size 2.5” x 2” x 1”:

15.00

Dapping (Doming) Block – size 48 mm square:

12.00

Dapping (Doming) Punch set of 24 pcs:

14.00

Dapping (Doming) Punch set of 36 pcs:

18.00

Bangle rod oval 15”:

11.00

Bangle rod round 15”:

8.00

Bench Anvil – 8” Long:

22.00

Reversible Ingot Mould:

14.00

Ring Rod Plain 12” with long 3.5” Handle:

6.00

Ring Rod Grooved Plain 12” with long 3.5” Handle:

7.00

Ring Rod with Marking 12” with long 3.5” Handle:

7.00

Ring Rod Grooved with Marking 12” with long 3.5” Handle:

8.00

File Needle, Set of 12 pieces, Size: 14 cm in cuts 0, 2 & 4:

2.60

File Riffler, Set of 12 pieces, Size: 14 cm:

4.50

File Flat 8” with Rough Grains for Metal Chain Polishing:

1.80

File Spindle, Triangular 6½”:

1.30

Steel Pliers 4½” Flat Nose with Spring:

1.85

Steel Pliers 4½” Chain Nose with Spring:

1.85

Steel Pliers 4½” Side Cutting with Spring:

1.95

Steel Pliers 4½” Top Cutting with Spring:

1.95

Steel Pliers 4½” Round Nose with Spring:

1.85

Saw Frame, adjustable with tension screw:

5.20

Saw Blades of Length 134 mm (price for set of 144 pcs. of any size):

1.40

Number

Thickness

Width

T.P.I.

Number

Thickness

Width

T.P.I.

6/0

0.18

0.36

68

1

0.34

0.60

44

5/0

0.20

0.41

64

2

0.36

0.70

40

4/0

0.25

0.46

60

3

0.38

0.80

36

3/0

0.27

0.50

56

4

0.45

0.90

32

2/0

0.31

0.55

52

5

0.50

0.98

28

0

0.32

0.56

48

6

0.56

1.04

25
